Materials

This page describes the APIs Onshape provides for working with material libraries.

ℹ️ Onshape API Notes

All Onshape API calls must be properly authenticated.
For Enterprise accounts, replace cad in URLs with your company domain.
Onshape IDs are written as: {did}, {wvmid}, {eid}, {pid}, {otherId}. See Onshape API Intro for information on what these IDs mean and how to obtain them from your documents.
Variables for replacement are written as: {variable1} or <variableTwo>. Never include the braces or angle brackets themselves with these variables.
Visit the Learning Center's Intro to the Onshape API course for additional instruction and videos.

Get the standard Onshape material library

Call the getLibrary endpoint on the standard Onshape Material Library: https://cad.onshape.com/documents/2718281828459eacfeeda11f/w/97628b48cc974c2681faacfc/e/6bbab304a1f64e7d640a2d7d

Endpoint

GET /materials/libraries/d/{did}/{wvm}/{wvmid}/e/{eid}

Params

did: 2718281828459eacfeeda11f
wid: 97628b48cc974c2681faacfc
eid: 6bbab304a1f64e7d640a2d7d

Example

curl -X 'GET' \
  'https://cad.onshape.com/api/v16/materials/libraries/d/2718281828459eacfeeda11f/w/97628b48cc974c2681faacfc/e/6bbab304a1f64e7d640a2d7d' \
      -H 'Accept: application/json;charset=UTF-8; qs=0.09' \
      -H 'Authorization: Basic CREDENTIALS' \
      -H 'Content-Type: application/json;charset=UTF-8; qs=0.09'

Get a custom material library

Call the getLibrary endpoint on a custom material library.

Endpoint

GET /materials/libraries/d/{did}/{wvm}/{wvmid}/e/{eid}

Example

Create a .csv file with the following data. Make sure to include the headers in the first row of the file.
Category Name Density
Wood Ash, white 500
Wood Balsa 160
Wood Basswood 420
Follow the Onshape Help Docs for importing a custom material library into an Onshape document.

Category	Name	Density
Wood	Ash, white	500
Wood	Balsa	160
Wood	Basswood	420

Call the getLibrary endpoint on the document in which you imported the library:

curl -X 'GET' \
'https://cad.onshape.com/api/v16/materials/libraries/d/{did}/w/{wid}/e/{eid}' \
    -H 'Accept: application/json;charset=UTF-8; qs=0.09' \
    -H 'Authorization: Basic CREDENTIALS' \
    -H 'Content-Type: application/json;charset=UTF-8; qs=0.09'

View the response and confirm that the three wood materials appear:

{
    "propertyDefinitions": [
        {
            "category": "Physical",
            "unitsChoices": [
                "lb/in^3",
                "kg/m^3"
            ],
            "displayUnits": "lb/in^3",
            "name": "DENS",
            "type": "REAL",
            "displayName": "Density",
            "units": "lb/in^3",
            "description": "Density"
        }
    ],
    "materials": [
        {
            "id": "knkoCnpG54jpomV9",
            "category": "Wood",
            "displayName": "Ash, White",
            "propertyValues": {
                "DENS": "500"
            }
        },
        {
            "id": "KFs2xUkZryPUnOom",
            "category": "Wood",
            "displayName": "Balsa",
            "propertyValues": {
                "DENS": "160"
            }
        },
        {
           "id": "puQQbVLoZ7b5kO9e",
            "category": "Wood",
            "displayName": "Basswood",
            "propertyValues": {
                "DENS": "420"
            }
        }
    ],
    "name": "Material Library 1",
    "displayName": "Material Library 1",
    "versioned": false
}

Update a custom material library

Update an existing material library via .csv file.

Endpoint

POST /materials/libraries/d/{did}/w/{wid}/e/{eid}/csv

Example

Complete the Get a custom material library example before starting this one.
Create a .csv file with the following data. Make sure to include the headers in the first row of the file.
Category Name Density
Wood Teak 640
Call the updateLibrary endpoint on the document in which you added the library.

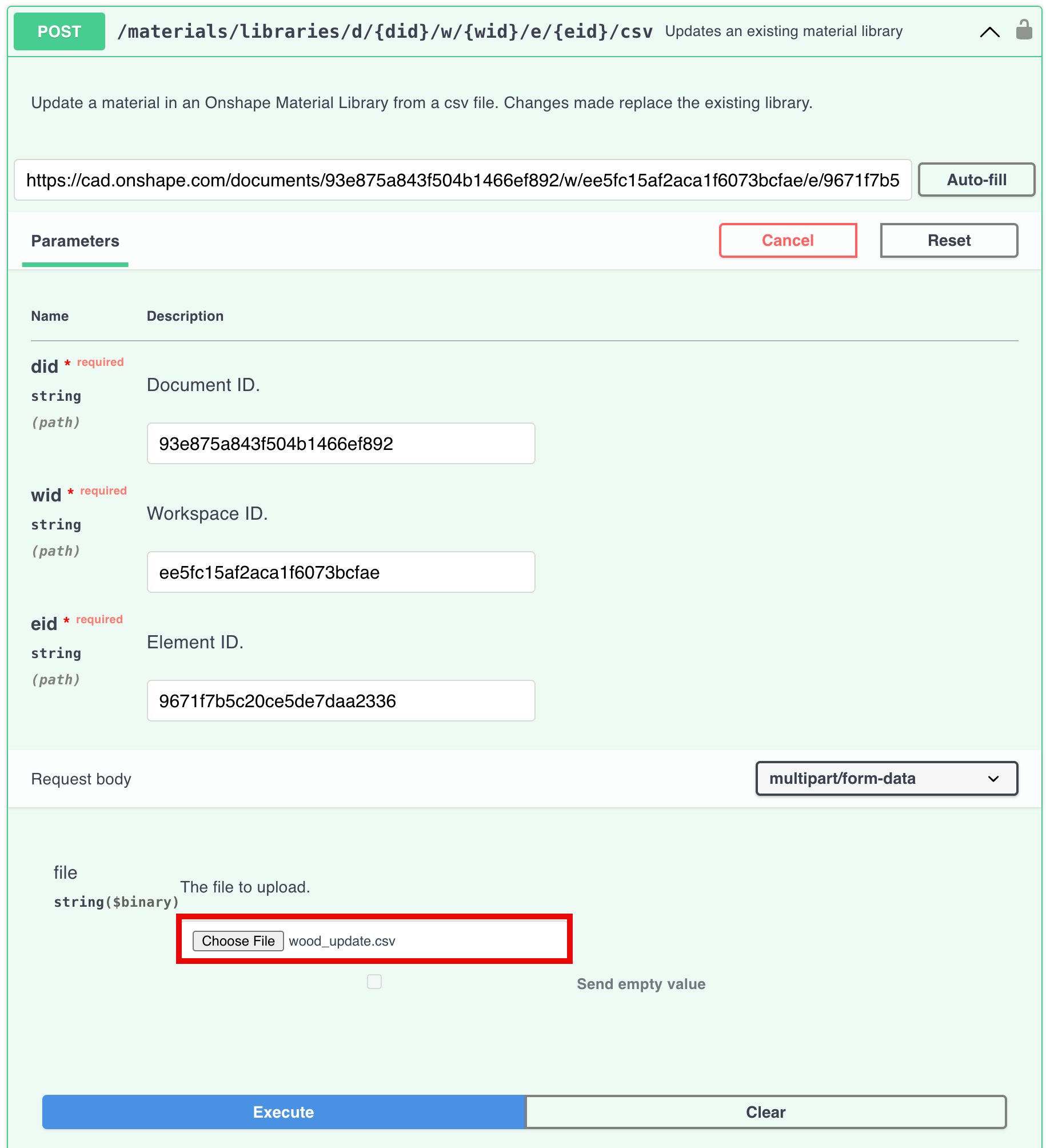

In the Glassworks API Explorer, you can upload the .csv file directly in the UI.

Category	Name	Density
Wood	Teak	640

Call the getLibrary endpoint on the document in which you imported the library again:

curl -X 'GET' \
'https://cad.onshape.com/api/v16/materials/libraries/d/{did}/w/{wid}/e/{eid}' \
    -H 'Accept: application/json;charset=UTF-8; qs=0.09' \
    -H 'Authorization: Basic CREDENTIALS' \
    -H 'Content-Type: application/json;charset=UTF-8; qs=0.09'

View the response and confirm that the Teak material has replaced the original three materials in the list:

{
  "propertyDefinitions": [
    {
      "category": "Physical",
      "unitsChoices": [
        "lb/in^3",
        "kg/m^3"
      ],
      "displayUnits": "lb/in^3",
      "name": "DENS",
      "type": "REAL",
      "displayName": "Density",
      "units": "lb/in^3",
      "description": "Density"
    }
  ],
  "materials": [
    {
      "id": "x0IfPNuCAKkWUPpw",
      "category": "Wood",
      "displayName": "Teak",
      "propertyValues": {
        "DENS": "640"
      }
    }
  ],
  "name": "Material Library 1",
  "displayName": "Material Library 1",
  "versioned": false
}
